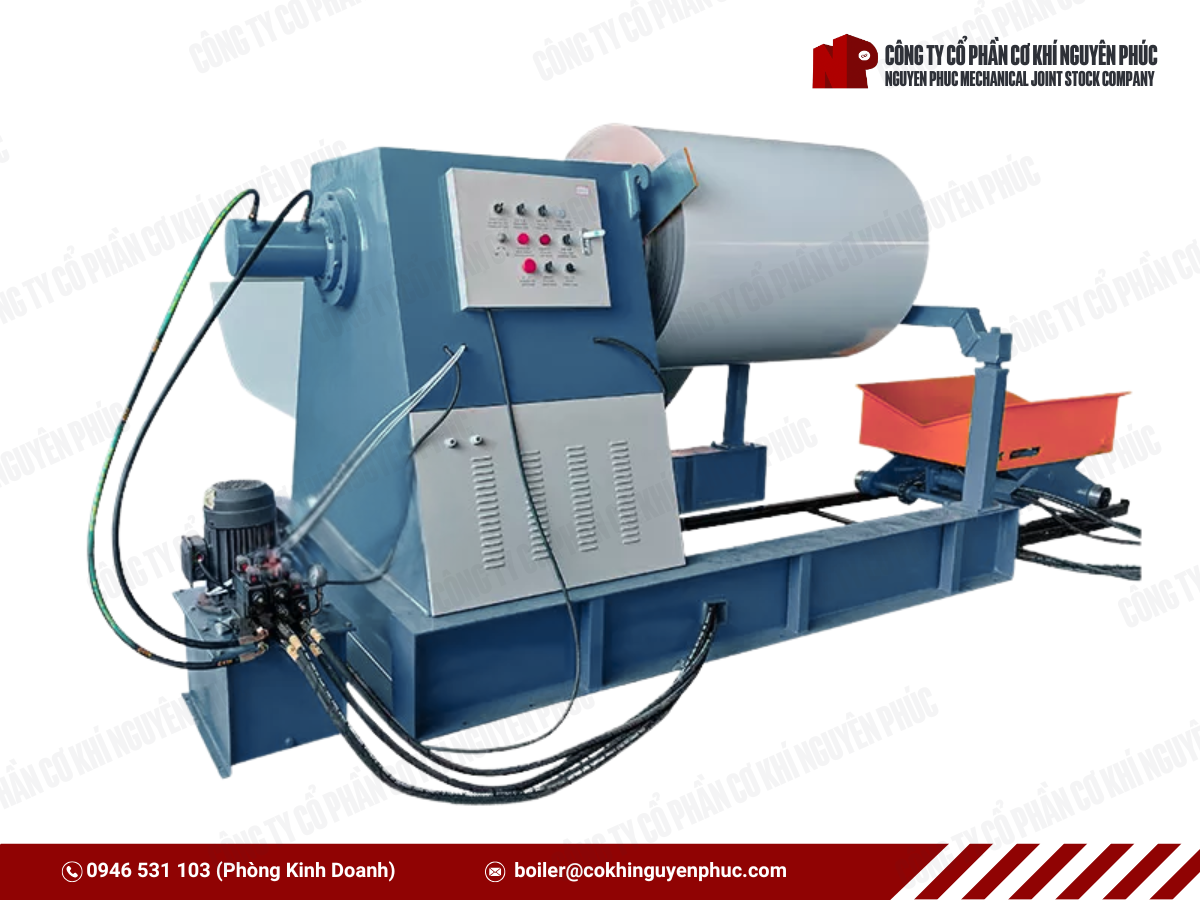

Automatic Decoiling Machine
An automatic decoiler machine is an essential piece of equipment in any metal processing and roll forming production line. Its primary function is to automatically uncoil, flatten, and feed coiled metal sheets into subsequent processing machines. By straightening the material and removing the coil set (the natural curvature of the coil), the decoiler ensures a smooth and continuous workflow. This not only significantly improves production efficiency and safety but also guarantees that the material is in optimal condition for the next stage, such as forming or cutting, making it a critical component for maintaining a high-speed and high-quality manufacturing process.
The slitting machine is a critical component that serves as the gateway to any high-efficiency roll forming line. This specialized equipment is designed to take wide metal coils and precisely cut them into narrower strips of a specific width, preparing the material for the subsequent forming process. The technology employs a set of highly durable circular blades that make longitudinal cuts as the coil unwinds, ensuring unparalleled accuracy and clean edges.
By enabling manufacturers to purchase and process wider, more cost-effective master coils, the slitting machine significantly reduces material waste and provides the flexibility to produce multiple product widths from a single source. This not only enhances production efficiency and minimizes operational costs but also allows businesses to quickly adapt to a diverse range of customer specifications, solidifying its role as an indispensable asset in modern metal fabrication.
SPECIFICATIONS
Dimensions (LxWxH): 2600mm x 1050mm x 1500mm
Weight: 2100 Kg
Frame: H200
Load Capacity: 8 Ton (Max)
Discharge Speed: 0m/p - 45m/p (Max)
Main Loading Shaft: Ø187 mm
Main Loading Bearing: Ø320mm x Ø180mm x Ø91mm
Electric Power: 5.5 Kw / 7.5 Hp
RAW MATERIAL SPECIFICATIONS
Maximum Sheet Width 1250mm (Max)
CONTROL CABINET
CB power supply Fuji - Mitsu
Motor overload relay protection: Yes
Hydraulic valve switching relay: 10A – Idec - Izumi - Japan
Automatic sheet discharge contactor: Yes
Proportional Valve: Yes
Electric wire: Vietnam
OTHER SPECIFICATIONS
Electric Motor Hitachi - Japan
Pump head 31 Cm3/v
Valve Propiston - Taiwan
Oil Hose: Yokohama / Dynesflex
Drive Motor: 5 Piston 400 cc/v
Load Chain: RS – 100
Pressure Gauge: 250Kg/cm2
Hydraulic Cylinder: Ø140 – ST120
Machine Operation Video
