Automatic Decoiling Machine

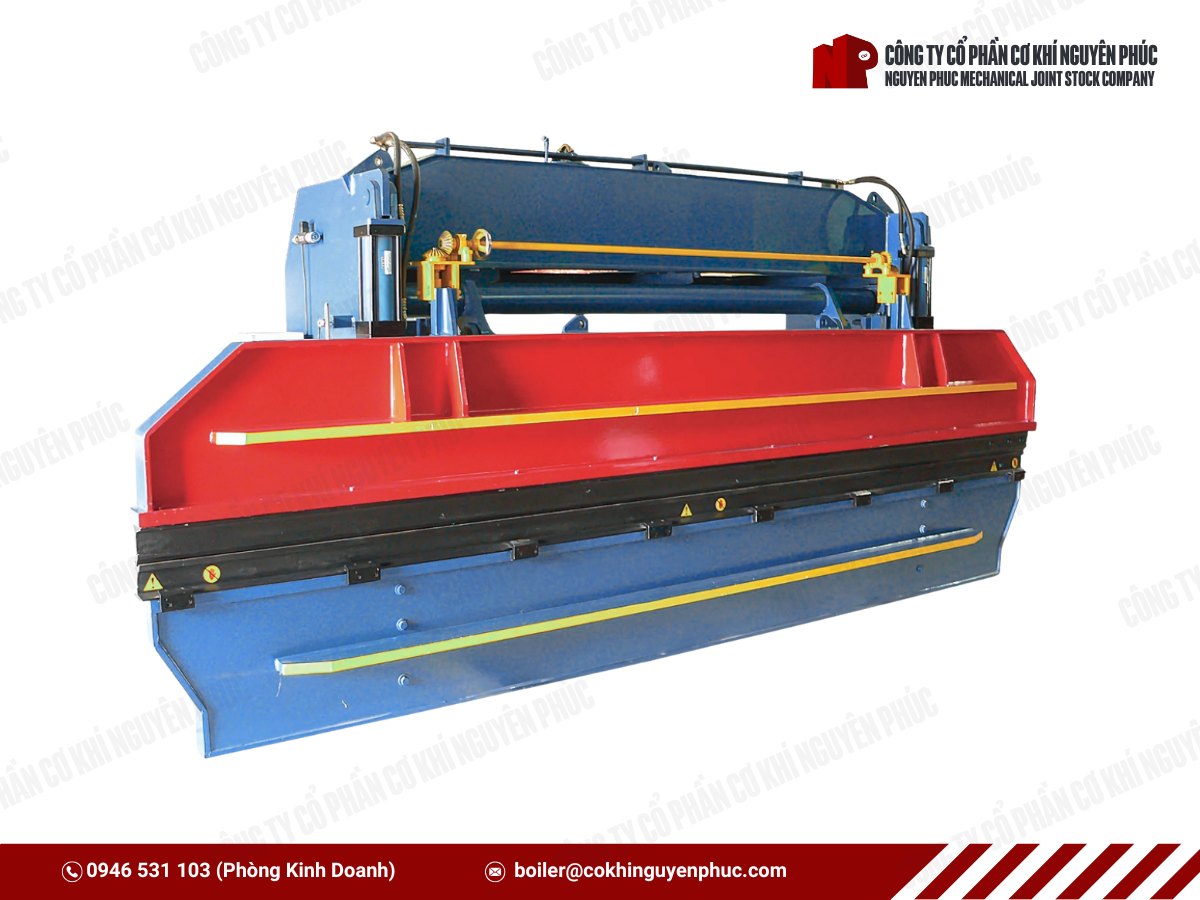

An automatic sheet metal bending machine with automatic angle adjustment is a piece of advanced and precise equipment used for the high-precision bending of metal sheets. Equipped with a sophisticated control system, this machine can automatically adjust the bending angle and position according to pre-programmed settings. This functionality offers exceptional accuracy and repeatability, significantly reducing manual labor and minimizing setup time. It is an ideal solution for intricate bending tasks and high-volume production, ensuring consistent product quality while improving overall efficiency and reducing material waste.

TẢI CATALOGUE SẢN PHẨM

In the modern sheet metal industry, the automated roll forming machine represents a significant technological advancement, moving beyond traditional manual processes to deliver superior precision and efficiency. This state-of-the-art machine is designed to automatically bend and shape sheet metal into complex profiles and structural components, eliminating the need for constant operator intervention.

By integrating advanced computer numerical control (CNC) systems, the machine can execute precise bending sequences based on pre-programmed designs, ensuring perfect repeatability and exceptional accuracy on every part. This not only dramatically increases production speed but also reduces material waste and labor costs. The automated roll former is an ideal solution for businesses handling intricate designs or high-volume orders, providing a reliable and intelligent system that guarantees consistent quality, enhances workplace safety, and drives operational excellence in metal fabrication.

TECHNICAL SPECIFICATIONS

Machine Specifications

Dimensions (L x W x H):

Type 4.5M - H390: 4500 mm x 1100 mm x 2000 mm

Type 6.1M - H390: 6100 mm x 1100 mm x 2100 mm

Type 6.1M - H600: 6100 mm x 1300 mm x 2100 mm

Weight:

Type 4.5M - H390: 3250 Kg

Type 6.1M - H390: 4300 Kg

Type 6.1M - H600: 5100 Kg

Sheet metal thickness (mm):

Type 4.5M - H390: ≤ 1 mm

Type 6.1M - H390: ≤ 0.8 mm

Type 6.1M - H600: ≤ 1 mm

(Applicable for regular steel with tensile strength ≤ 50 Kg/cm²)

Press brake tooling set (m):

Type 4.5M - H390: 4.5 m

Type 6.1M - H390: 6.1 m

Type 6.1M - H600: 6.1 m

(Material from railroad tracks)

Tonnage (Tons)

Type 4.5M - H390: 2 rams ∅100 x 200 ST | 15.7 Tons/2 rams (at 100 Kg/cm²)| 2 rams designed for a maximum pressure of 140 Kg/cm² - 22 Tons

Type 6.1M - H390: 2 rams ∅100 x 200 ST | 15.7 Tons/2 rams (at 100 Kg/cm²)| 2 rams designed for a maximum pressure of 140 Kg/cm² - 22 Tons

Type 6.1M - H600: 2 rams ∅125 x 200 ST | 24.5 Tons/2 rams (at 100 Kg/cm²)| 2 rams designed for a maximum pressure of 140 Kg/cm² - 34 Tons

Electric power (HP)

Type 4.5M - H390: 5 HP

Type 6.1M - H390: 3 HP

Type 6.1M - H600: 5 HP

Hydraulics

Electric Motor: (KW/HP) Hitachi / Teco / ABB

Valve: Propiston - Taiwan

Oil hose (mm): Ø19 mm <> Ø27 mm (Yokohama - Japan / Dyneflex)

Push button: Anti-mold and dust, super durable for over 5 years (Idec - Japan)

Pressure gauge (Kg/cm2): 250 Kg/cm² (CNN - Taiwan)

Hydraulic Oil R32 (Imported): 150L CONTROL CABINET Main Circuit Breaker (CB) Fuji - Mitsu

Motor overload relay protection: Yes

Hydraulic valve switching relay: 10A – Idec – Izumi - Japan

Push button: Anti-mold and dust, super durable for over 5 years (Idec – Japan)

Proportional speed control unit: Yes (1 speed)

Electric wire: Vietnam

PRESSING, CUTTING PARTS AND TRANSMISSION

Push button: Dust-proof, moisture-proof, ultra-durable for over 5 years Idec – Izumi (Japan)

Two-groove punch (mm) :

Small groove: 10 mm

Large groove: 20 mm Bearing KG / FBC
